The extendable flatbed trailer demonstrates stable performance across varying terrains, whether dry gravel roads inland or the humid conditions near coastal areas. Its flexibility in handling both containerized cargo and bulk freight makes a reliable and preferred choice among transport operators.
The 3 axle extendable flatbed trailer for sale is specifically engineered for efficient road transport of standard containers. The type of extendable flatbed trailer is frequently used in port operations, warehouse logistics, and intermodal transportation due to its ability to support various cargo handling methods.
The design allows for smooth loading and unloading processes and reduced operational costs. Apart from container haulage, the extendable flatbed trailer also serves well for moving general bulk goods, giving wider utility in the freight sector.
Interested extendable flatbed trailer? Click to consult and get a discount of up to $800!
Original Dimension: 12500mm*3000mm*1650mm
Extend Dimension: 24000mm*3000mm*1650mm
Load Capacity: 60 ton

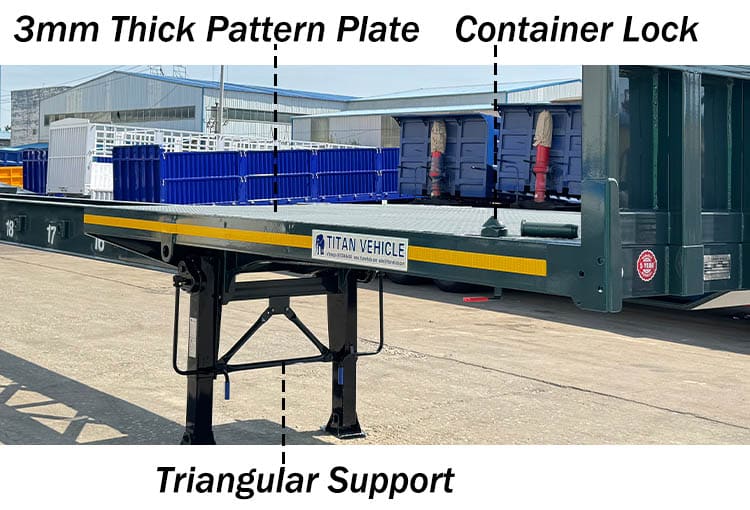

Floor Plate: 3mm thick pattern plate

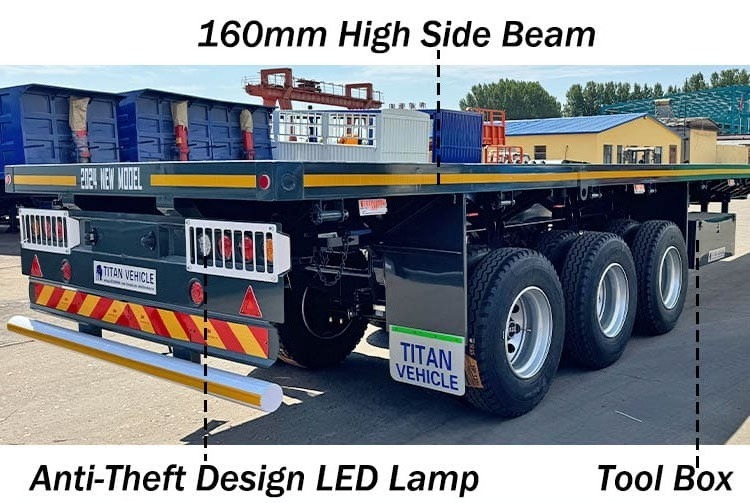

Side Beam: 160mm high

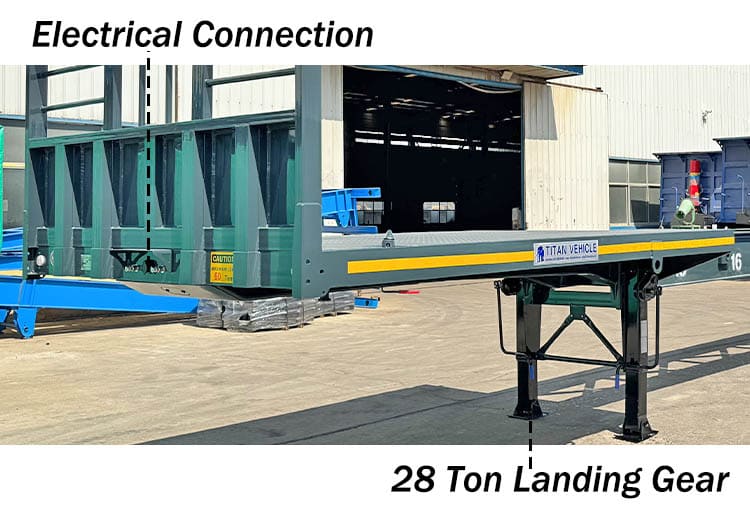

Landing Gear: 28 ton
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units
Leaf Spring: 10 layers
Suspension: mechanical suspension
Bumper: thickened
Lamp: LED Lamp with protective net
Interested extendable flatbed trailer? Click to consult and get a discount of up to $800!
Constructed with high strength alloy steel, the floor plate of the extendable flatbed trailer offers both high load-bearing performance and basic corrosion resistance. The material qualities become especially beneficial during extended use in Angola climates, where they help protect the tri axle extendable flatbed trailer against rust and degradation, ultimately contributing to long term structural integrity.
Structurally, the 3 axle extendable flatbed trailer cross beams are manufactured using 100mm thick channel steel. The increased thickness reinforces the chassis, helping the extendable flatbed trailer retain its shape and avoid distortion under full load conditions. To further boost structural resilience, diagonal supports are installed between the cross beams.
The brace form a triangular load distribution pattern and are firmly connected to the extendable flatbed trailer main beam. The bracing distance is controlled within 500mm, ensuring even stress allocation and minimizing the risk of frame distortion, especially when transporting dense bulk items.
On the manufacturing side, automatic submerged arc welding is used throughout the extendable flatbed trailer framework. The welding technique ensures a seamless and solid connection between parts, increasing the frame stability and reducing the likelihood of structural failure under pressure. Compared with manual methods, automated welding improves precision, consistency, and overall weld quality.
For exterior protection, TITAN applies powder spraying combined with a baking paint finish. While the method may increase the production cost slightly, painting provides noticeable advantages in terms of durability and appearance. The treated surface presents a smoother and more uniform color with a brighter finish. Additionally, the coating technique resists ultraviolet exposure and delays material aging. The characteristics help the extendable flatbed trailer maintain its original look even in intense sunlight, reducing the frequency of repainting and lowering the user long-term maintenance expenses.
The suspension system of the extendable flatbed trailer for sale is constructed from high strength steel and features a layered buffering structure that effectively absorbs road shocks. At the core is a 70mm center balance pin, complemented by reinforced side structures that work together to create a solid and stable suspension system. The setup provides reliable protection for both the extendable flatbed trailer and its cargo when navigating uneven or challenging road conditions in Angola.

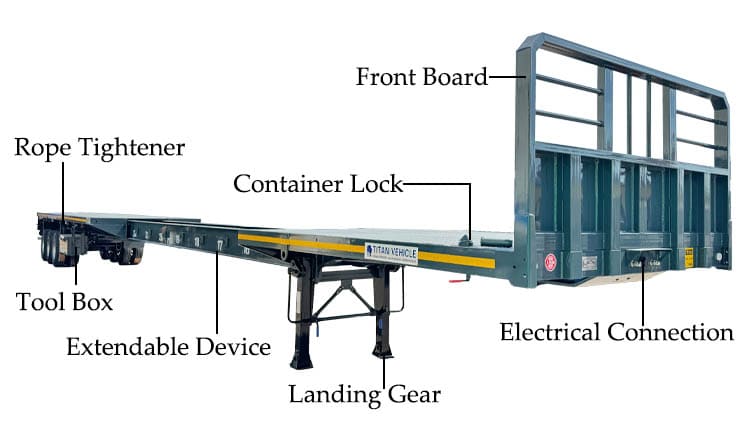

The extendable flatbed trailer also includes multiple rope tightener positioned along the sides. The tighteners are part of a complete cargo securing system, allowing operators to stabilize cargo at several points. When paired with the anti-slip floor structure and adjustable straps, these components help ensure the load remains secure during sharp turns, sudden braking, or uneven road conditions in Angola.
For corrosion protection during overseas delivery, TITAN employs a set of waterproofing treatments rarely found with other manufacturers. Before the extendable flatbed trailers are shipped, each 3 axle extendable flatbed trailer is coated with a layer of protective wax. Following that, the entire unit is wrapped in a specially fitted waterproof rain cover. The dual-layer defense effectively protects the extendable flatbed trailer from saltwater exposure and sea breeze damage during maritime transport, ensuring that arrives at the Angola in optimal condition.
