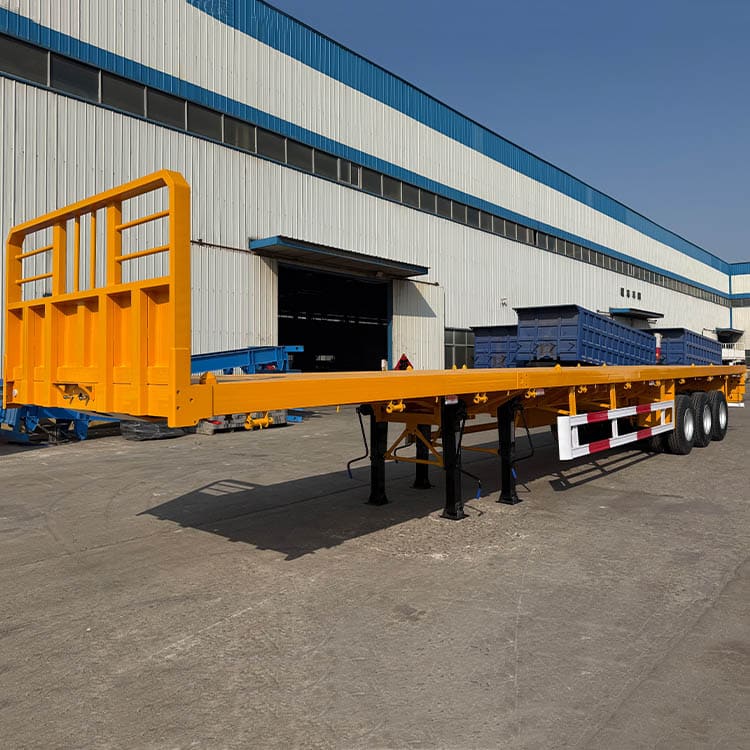

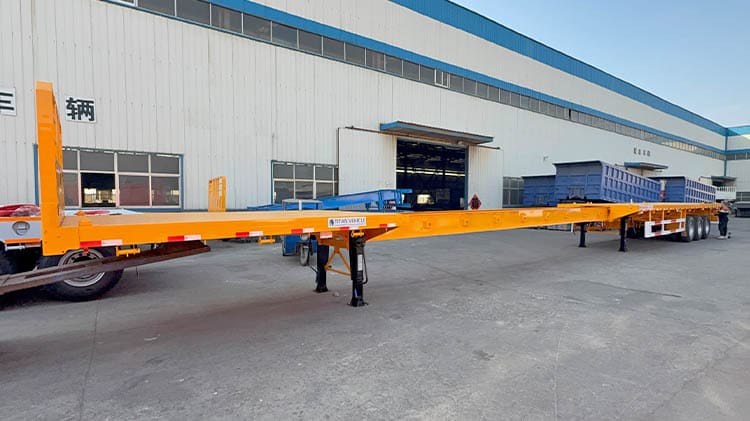

The extendable trailer is built to handle the transportation of both bulk goods and containerized cargo, offering a flexible solution that meets various logistics needs. Its design allows the extendable trailer for sale to be extended up to 24 meters, making adaptable for multiple transport scenarios.
To ensure suitability for use on Angola road networks, the 3 axle extendable trailer has been refined through several structural upgrades. These improvements aim to comply with local transportation regulations while delivering consistent and dependable performance.
When carrying heavy loads, the weight is evenly spread across the extendable trailer for sale frame, which helps minimize stress concentration and reduces the likelihood of structural warping or damage. For users with high demands for strength and durability, the TITAN extendable trailer offers a reliable and long-lasting option.
Consult extendable trailer and get a free spare tire!
Original Dimension: 12500mm*3000mm*1650mm
Extend Dimension: 24000mm*3000mm*1650mm
Load Capacity: 60 ton
Floor Plate: 3mm thick pattern plate
Side Beam: 160mm high
Landing Gear: 28 ton
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units,
Bumper: thickened
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp
Consult extendable trailer and get a free spare tire!
The extendable trailer for sale frame is crafted from Q355 grade low-carbon, high-strength alloy steel. The material selection increases the ability to withstand heavy duty usage and offers long-term resistance to wear. Reinforced by an optimized frame layout, the structure remains stable even when subjected to high loads. Furthermore, automated submerged arc welding technology is used during manufacturing to ensure secure bonding at all joints, maintaining the strength and consistency of the overall frame.

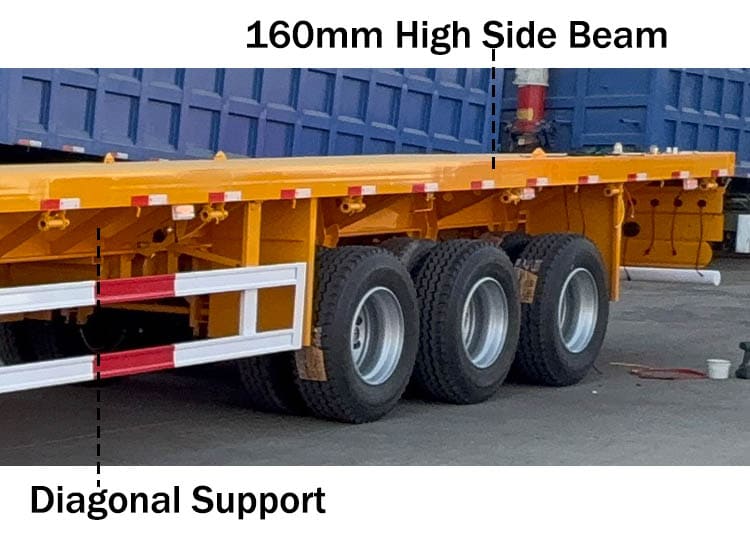

TITAN extendable trailer for sale features a carefully engineered chassis that connects the cross beams and main beams using diagonal braces. These braces form a reinforced support structure that effectively distributes weight and resists bending or twisting under pressure. The spacing between diagonal bracings is precisely kept within 500mm, contributing to the structural rigidity of the extendable trailer body.
In terms of surface treatment, TITAN applies an advanced powder spraying and baking paint process to the extendable trailer for sale body. Compared to conventional paint, powder coating adheres more strongly to the surface, is less prone to chipping, and offers better resistance to corrosion and aging. The finish helps maintain a clean, bright appearance even in regions exposed to intense sunlight and harsh climates.
The floor of the extendable trailer is designed to support diverse types of cargo. For the reason, a patterned steel plate is selected for its durability, visual appeal, and high friction properties. The high-strength patterned plate not only handles heavy loads efficiently but also offers resistance to rust, making especially suitable for use in humid or coastal environments in Angola and ensures long term reliability during daily operations.
The suspension system is built using high-strength steel and incorporates a multi-level buffering design to absorb shocks. A 70mm center balance pin is used in combination with reinforced structures on sides to form a stable and robust suspension setup. The design helps protect the extendable trailer for sale and its cargo when traveling on rough or uneven terrain.

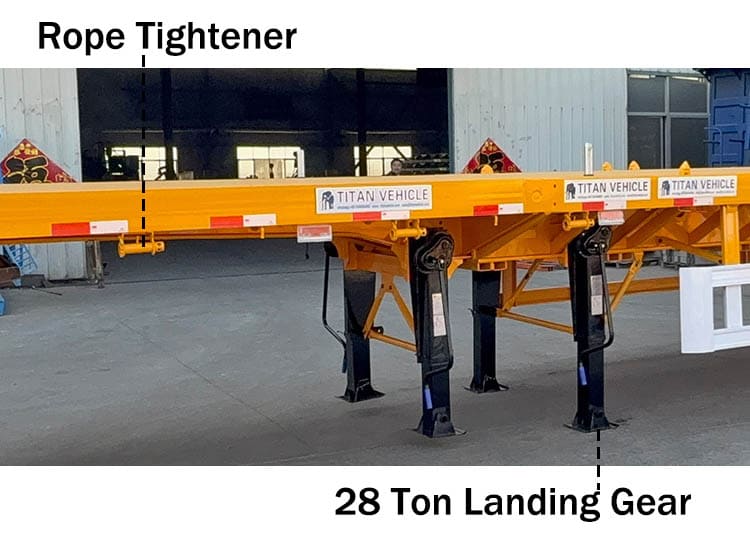

Cargo security is addressed through the inclusion of rope tightener devices mounted on the side of the flatbed plate. The components are essential for fastening loads securely during transport, especially when navigating sharp curves or abrupt stops. The straightforward design ensures ease of use, while also enhancing overall safety and handling efficiency during loading and unloading.

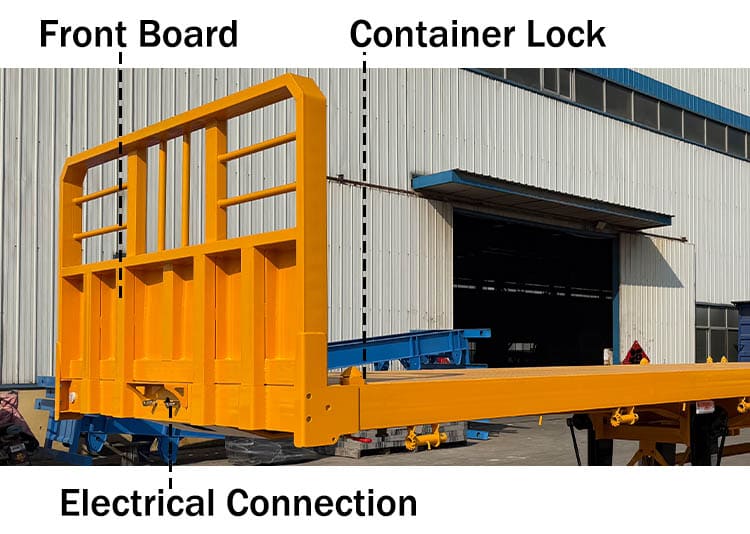

The extendable trailer for sale is equipped with adjustable container locks, allowing operators to safely secure various container sizes. The extendable system enhances versatility and helps the extendable trailer better manage dynamic loads during transit. The contributes to the extended service life and consistent performance in demanding environments.
At the front of the extendable trailer, the traction plate connects the flatbed to the towing tractor, which made from a single piece of steel that is 12mm thick. The one-piece construction distributes forces evenly and ensures dependable towing performance. Combined with the shock-absorbing features built into the extendable trailer design, the traction system helps reduce the risk of damage from sudden impacts or extreme movements, thereby improving operational safety and minimizing the risk of mechanical disconnection.
For buyers in Angola, TITAN offers two shipping methods: container transport or roll-on/roll-off (Ro-Ro) shipping. Prior to shipment, each extendable trailer for sale undergoes a specialized protective process to ensure safe delivery, including a wax coating applied across all exposed surfaces, followed by the installation of a waterproof cover that is custom-fitted to the extendable trailer body. The double-layer protection effectively shields the extendable trailer for sale against saltwater corrosion and moisture-related damage during sea transportation, ensuring that arrives at its destination in excellent condition and ready for use.
