The extendable semi trailer for sale has been thoughtfully upgraded to meet Angola road transport standards while delivering a reliable and high performance solution for hauling both containers and bulk cargo. Its robust frame is engineered to offer consistent performance under various loading conditions.
When the extendable semi trailer is fully loaded, the design of the extendable semi trailer ensures that weight is evenly distributed across the structure, even load distribution helps to minimize concentrated stress, which could otherwise lead to frame deformation or structural damage over time.
Interested extendable semi trailer? Click to leave a message to get a free spare tire!

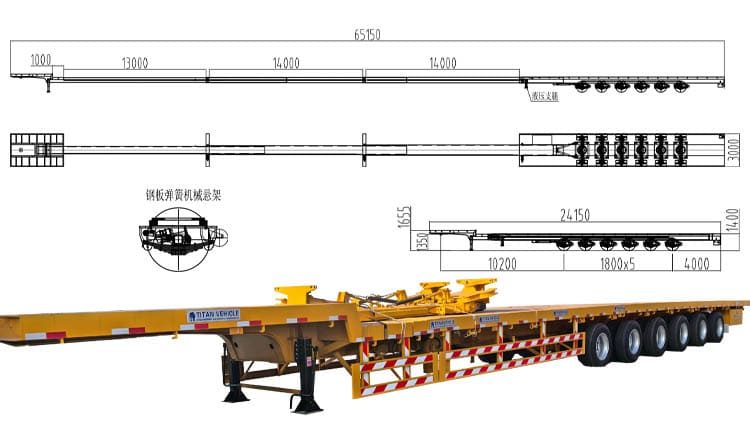

Original Dimension: 24150mm*3000mm*1650mm
Extend Dimension: 65000mm*3000mm*1650mm
Load Capacity: 90 ton

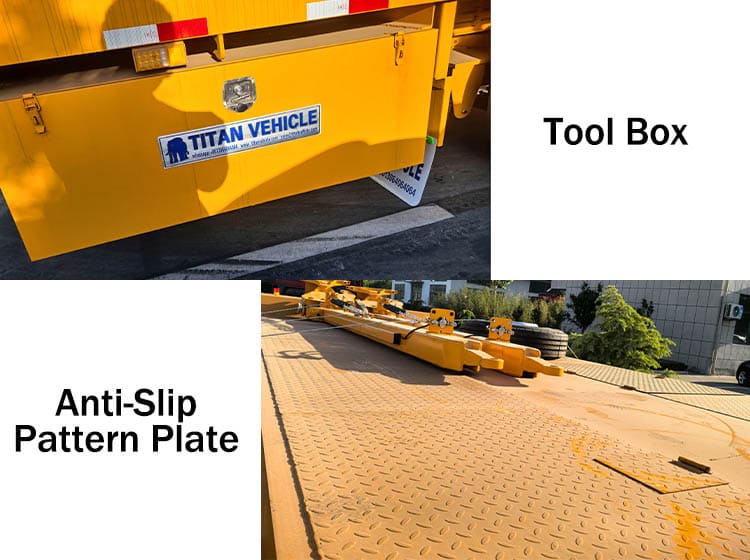

Floor Plate: 3mm thick pattern plate
Side Beam: 160mm high

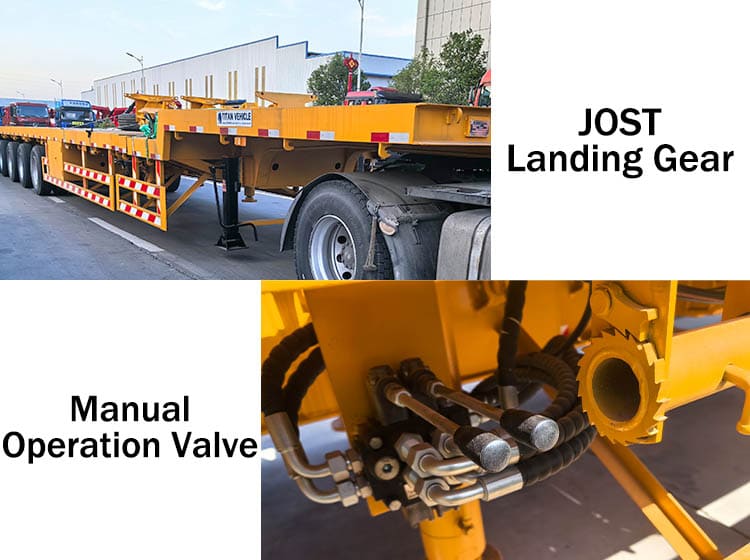

Landing Gear: 28 ton
Axles: 6 axles, 13ton, TITAN brand
Tire: 24 units, 275/80R22.5
Leaf Spring: 10 layers
Suspension: mechanical suspension

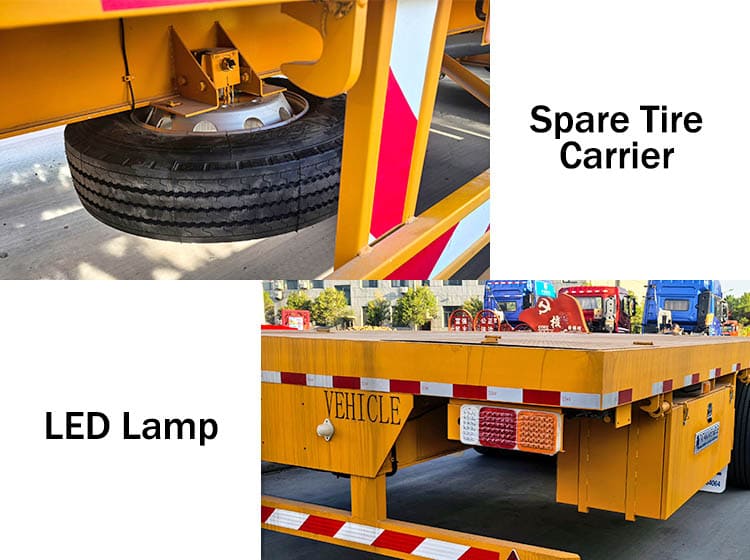

Lamp: LED Lamp
Interested extendable semi trailer? Click to leave a message to get a free spare tire!
One of the significant enhancements lies in the extendable semi trailer surface treatment. The entire 6 axle extendable semi trailer adopts powder spraying and baking paint technology. The advanced coating technique provides a high level of resistance to color fading and environmental wear. While slightly more expensive than conventional spray painting, powder coating offers better adhesion and protection against peeling, fading, and corrosion. Real-world usage has shown that extendable semi trailers treated with the method retain their color and finish for up to five years or more, which helps Angola customers save on frequent repainting and lowers overall maintenance costs for customers in Angola.
The structural components of the extendable semi trailer are made using HG60 high tensile alloy steel, a material known for its strength and resistance to stress and fatigue. The selection significantly boosts both the durability and stability of the extendable semi trailer under heavy loads.
Additionally, the cross beams in the extendable semi trailer frame are constructed from 100mm thickened channel steel, which enhances the strength and load-bearing capacity of the entire chassis. Even when transporting at full capacity, the structural integrity of the frame is maintained, minimizing any potential risk of bending or deformation.
To further reinforce the chassis structure, diagonal bracing is installed between cross beams. These braces are connected in a triangular layout, which provides added rigidity and disperses force more evenly across the frame. The reinforced configuration strengthens the bond between the cross beams and the main beam, contributing to a solid and stable structure.
For improved connection durability, the extendable semi trailer utilizes automatic submerged arc welding technology during assembly. The automated process ensures consistent and secure welds throughout the structure, which enhances overall strength and contributes to the extendable semi trailer reliable performance during long term, high stress operations.
The braking system is another highlight of the 6 axle extendable semi trailer, which is fitted with 16 ton brake pads that significantly improve braking efficiency. The high capacity pads provide faster response during emergency braking, effectively reducing the likelihood of tire lock-up and helping to extend tire lifespan. Especially in challenging or unpredictable road conditions in Angola, the system can reduce the braking distance by more than five meters compared to standard configurations, thereby improving operational safety.
Complementing the brake pads is a system of air pipes made from high pressure rubber material. These air pipes are more robust and long lasting than traditional options and are designed to perform effectively for up to a decade. The extended lifespan helps reduce the need for frequent replacements and lowers long term maintenance expenses for Angola users.
In terms of corrosion protection during international shipping, TITAN applies meticulous anti-rust treatments before delivery. Each 6 axle extendable semi trailer for sale is thoroughly sprayed with a protective layer of wax. Additionally, all units are wrapped in specially designed waterproof raincoats, which provide an extra barrier against damage from seawater, salty air, and other harsh maritime conditions. The dual-layer packaging system ensures that extendable semi trailers arrive in excellent condition, maintaining both structural quality and visual appeal.
